Forged Steel Gate Valves

The forged steel gate valve for oil and gas field is used to control the flowing and stopping of mud,which is jointed by thread connection and convenient to be installed.The forged steel gate valve is mainly composed of thread connection,union ends and features strong rigidity,safe and reliable,whoes seat and gate are sealed by Metal to Metal Sealing.The handwheel rim on the forged steel gate valve is rugged so that it can provide positive grip for users.Our forged steel gate valve is manufactured and tested in accordance with API 6A and available in API 6A PSL.We can also supply forged steel gate valve with Flanged End Connections,Hammer Union.

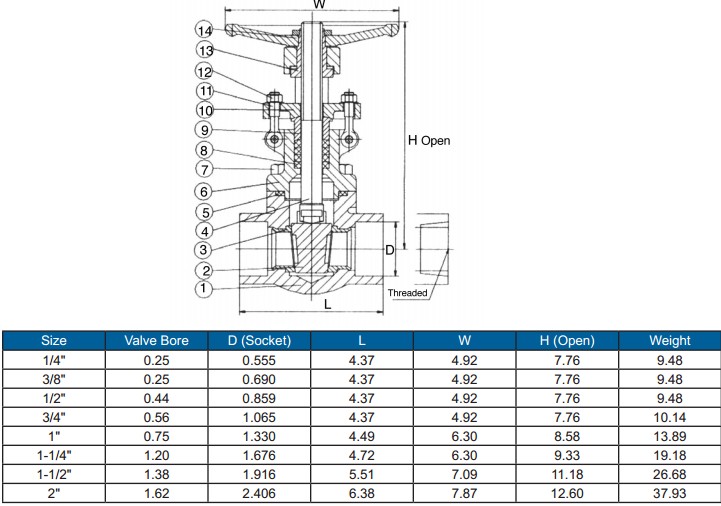

Main specifications for forged steel gate valve as follow:
Constructions: thread connection,union ends,handwheel for quick release.
Available materials: carbon, stainless steel,forged steel
Standards: Conforms to API 6A
Material Classes :DD, EE, FF, NACE MR-01-75
Pressure Ratings: 3000psi, 5000psi, 10000psi

Applications: Oil and Gas lines
