The globe valve has a very reliable function of cutting,which is very suitable for regulating,cutting off and throttling applications.The bronze globe valve is equipped with a screw-over bonnet,threaded end connections and EPDM seat disc providing a positive shutoff at 175 psi WWP,which is used for commercial and industrial applications.The EPDM seat disc provides female threaded ends so that it is easy to be installed.A comprehensive options available in seat disc materials is provided for the users so that they are able to opt for globe valves most suitable for the intended service.For example, renewable alloy disk and seat, renewable elastomeric disk.Vee-Reg pattern stainless steel disk and so on.What's more,there are many advantages on bronze globe valve such as simple structure, ease of manufacturing and maintenance, long service life,reliably sealing,ect.
Services:commercial and industrial applications
Constructions :Integral seat,Screw-in bonnet, PTFE seat disc,threaded end connections
Standard: Conforms to MSS SP-80
Size range: 1/8" to 3"

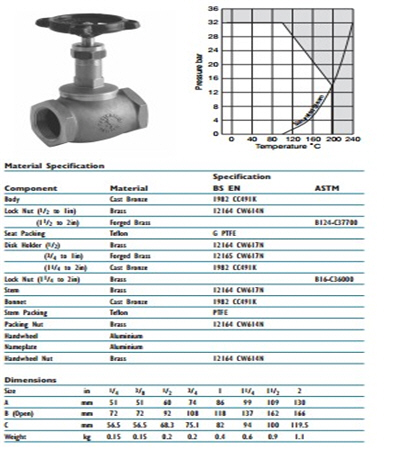

Other specifications as shown in the following figure:
